| Specification | Details |
|---|
| Brand | TP-Link |

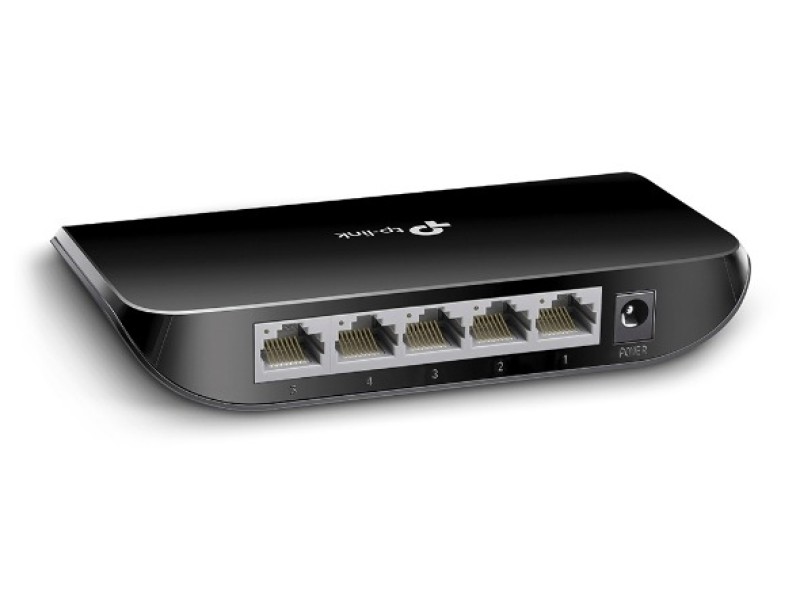

| Model | TL-SG1005D |
| Number of Ports | 5 Gigabit Auto-Negotiation RJ45 Ports |
| Port Features | Supports Auto MDI/MDIX, 802.3x Flow Control |
| Ethernet Technology | Green Ethernet technology for power consumption savings |
| Design | Plastic case, desktop or wall-mounting design |
| Plug and Play | Yes, no configuration required |
| Interface | 5 10/100/1000Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security | Lock: No |
| External Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
| Dimensions | 5.5 × 3.5 × 0.9 in. (140 × 88 × 23 mm) |
| Max Power Consumption | 2.4W |
| Max Heat Dissipation | 8.2 BTU/h |
| Transmission Method | Store and Forward |
| Advanced Functions | Green Technology, 802.3x Flow Control, Back Pressure, 802.1p/DSCP QoS |
| Certification | FCC, RoHS |
| Package Contents | 5-Port Gigabit Desktop Switch TL-SG1005D, Power Adapter, Installation Guide |
| Operating Environment | Operating Temperature: 0℃40℃ (32℉104℉), Storage Temperature: -40℃60℃ (-40℉140℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
Upgrade your network with the TP-Link TL-SG1005D for reliable and high-speed gigabit connectivity.
